Animation State Machine & Blendspaces

Since I chose to develop this solely using Dear ImGui and not using some finished graph solution like ImNodes, I had to figure out how to draw the nodes and graph myself.

In order to draw the graph and nodes I chose to utilize the ImGui DrawList functionallity of Dear ImGui. I utilize a 3x3 Matrix in order to save the position and zoom of the viewport camera. The nodes then store their own positions as Vector2's, these are then multiplied with the camera matrix before rendering them to the screen so that they get rendered on the screen correctly relativley to the camera view.

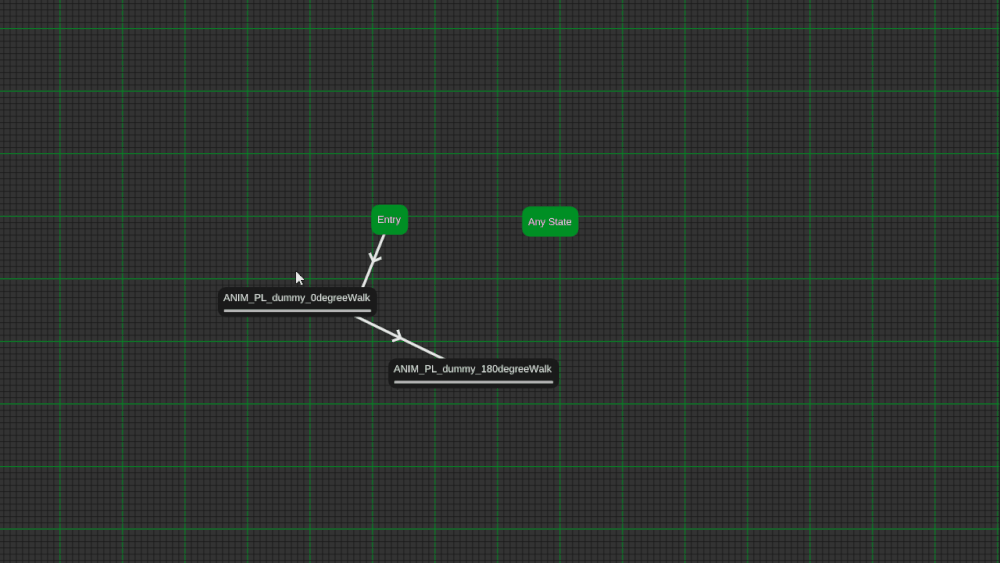

The biggest problem I encountered developing the mouse movement was the fact that the camera always zoomed in towards the top left corner no matter where the mouse was placed, I solved this by calculating the difference between the mouse position in world space this frame and last frame, I then added the difference to the cameras position when zooming so that it zoomed towards the mouse.

To ensure that the state machine knew if it needed to progress from one state to another I had to implement global variables.

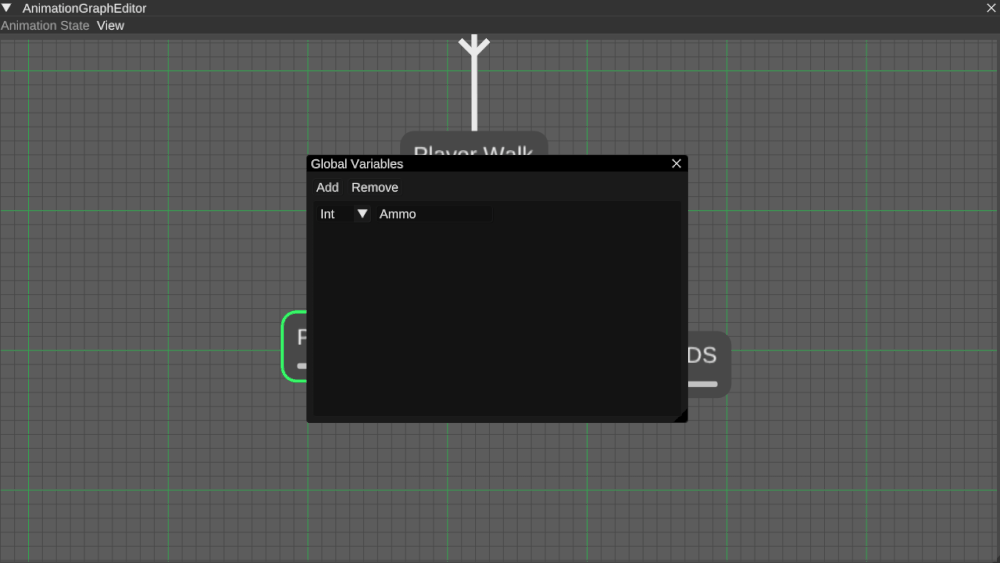

The variables store an ID, used so that multiple variables of different types can have the same key. A variable type to identify if it's an int, float, or bool. A key used by the Links between states to know if they need to transition or not. A data index that points to one of multiple lists containing the data used to check the conditions of the links, the data in these lists can then be set externally by a gameplay programmer using either the id or key of the variable.

One of the problems I stumbled upon while making the Global Variables was the fact that they were global, meaning that the data they contained was shared across all instances of the same state machine. I solved this problem by making the data local to the animator component that held the instance of the state machine and then sending that data to the state machine every update.

The most vital part to making an animation state machine are the links between the nodes. I needed to develop a system that accomplished two things, giving the user the ability to link two nodes together and enabling the user to set the conditions for when the links should transition to the next node.

When linking two nodes the user can compare the value of a global variable using a operator and a value that is local to the current link. If the comparison returns true then the state machine can transition to the next node.

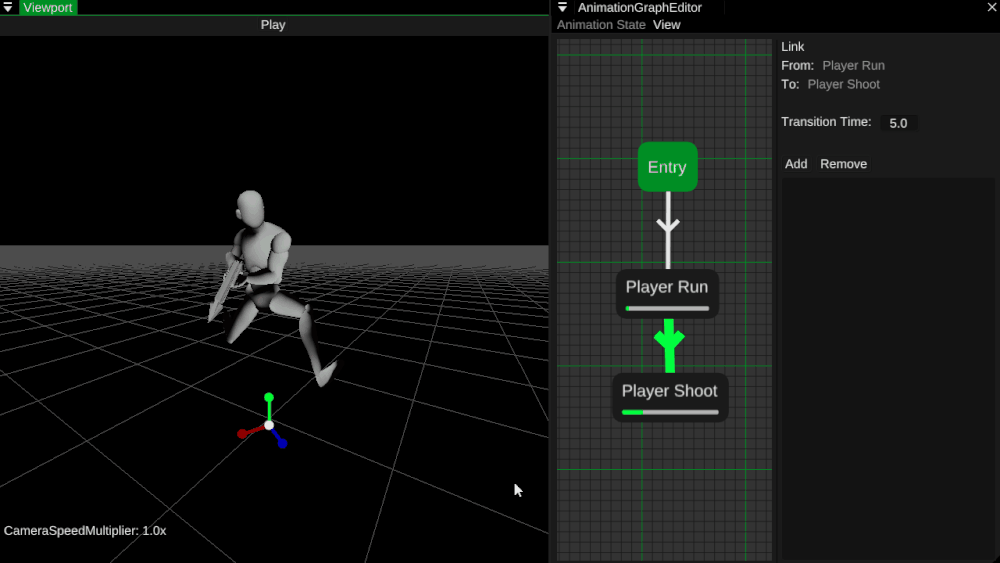

When transitioning between two nodes I wanted the animation to blend during a predetermined transition time that is set by the user.

The blending was implemented by first decomposing animation matrices into position, rotation and scale vectors when loading. I then lerp the decomposed animations of the two transitioning animations using a timer that gets remapped to go from 0 to 1 depending on the predetermined transition time. The result then gets composed back into a list of matrices that then gets sent to the graphics card for rendering.

Implementing 2D blendspaces had me using triangles in order to figure out what animations that I needed to blend between.

I had to lerp the animations between each other, I accomplished this by calculating the weights of the animations in the triangle using their Barycentric coordinates. Once I had their weights I could determine which animation was the heaviest and use that as my base, I then blended between the base animation and the other two animations based on the weights of the other two animations.

Since I decided to implement 2D blendspaces I had to implement some sort of triangulation.

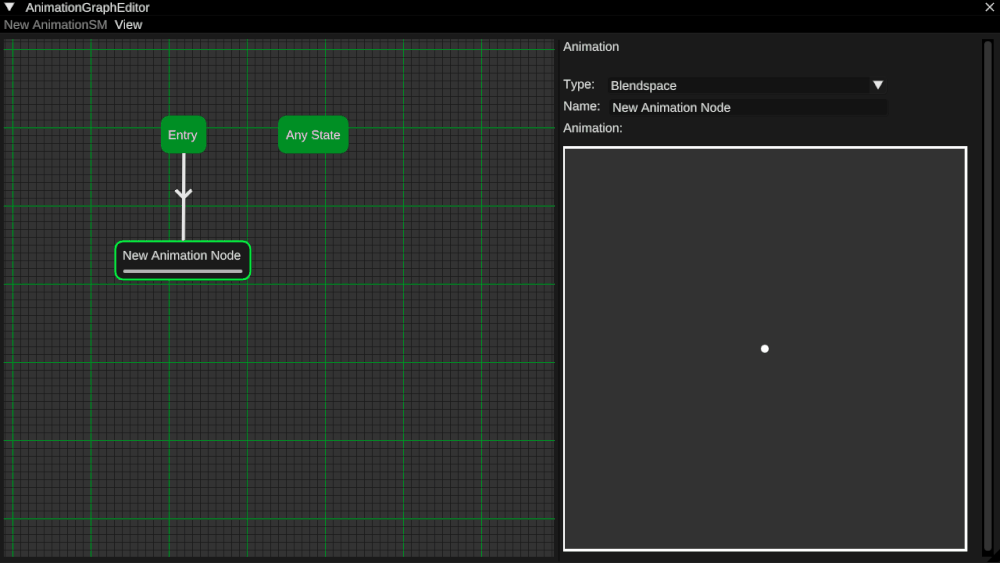

I chose to implement the Bowyer-Watson algorithm which is a type of Delaunay Triangulation in order to generate the triangles used for blending in a 2D blendspace.

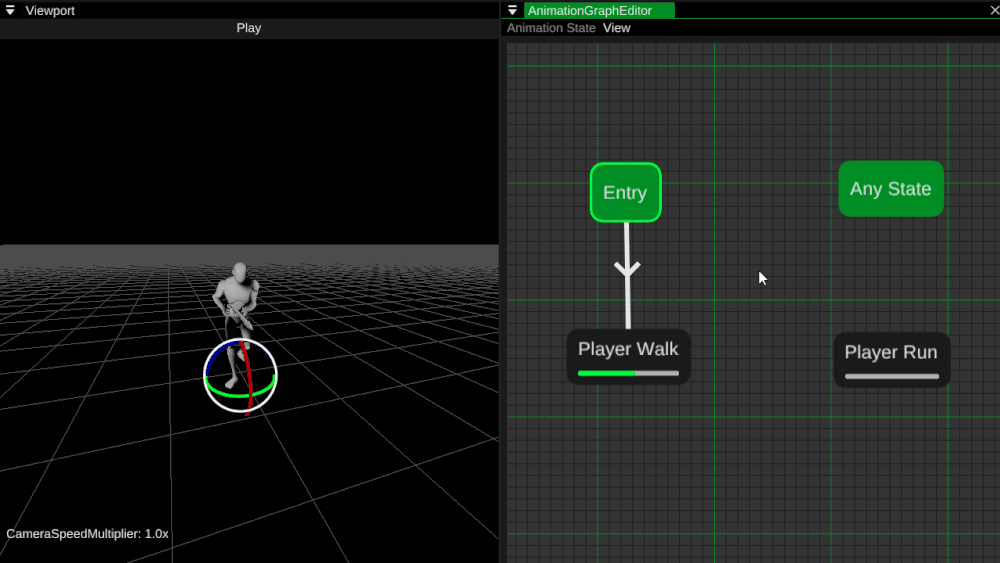

The any state exists for when you want to go to a specific state regardless of which state you are currently located in.

This is a nice way to switch from any state e.g. if the player were to die, we would want to immediately switch to the death animation no matter where in the state machine we are currently located.

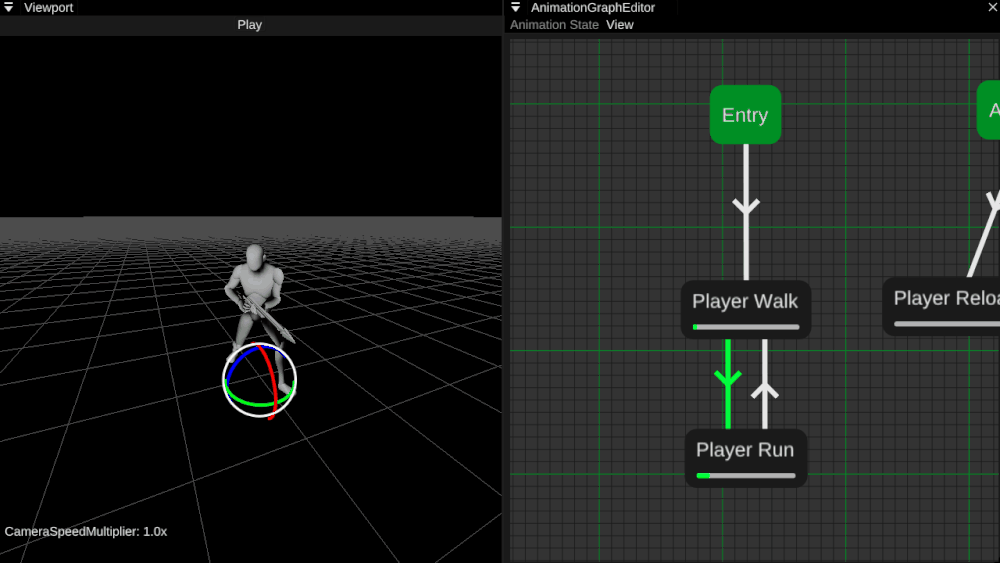

I wanted to give the user the ability to preview what animation was playing and which animation link the state machine was currently passing through.

This was done by adding a progress bar to the animation nodes that filled up based on how far into the animation the state machine currently was and then changing the color of the currently transitioning link.

I needed to a way to let the user easily and intuitively add animations into the state machine.

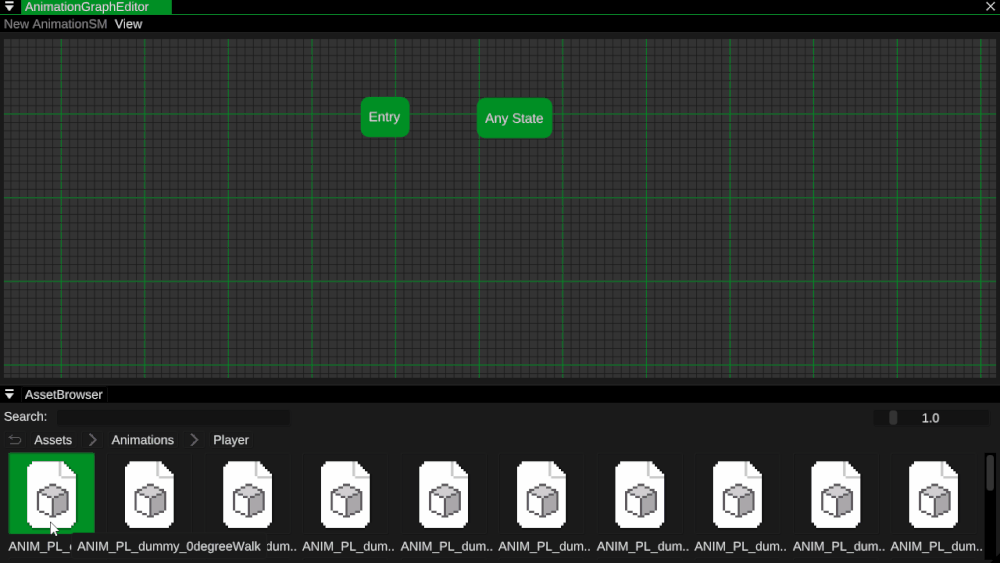

This was relatively easy to implement since we already had the functionally of dragging and dropping files from the asset browser, all I had to do was to check if the dropped file was an animation and then create a new node at the same position as the mouse and then set that node as the currently selected node.

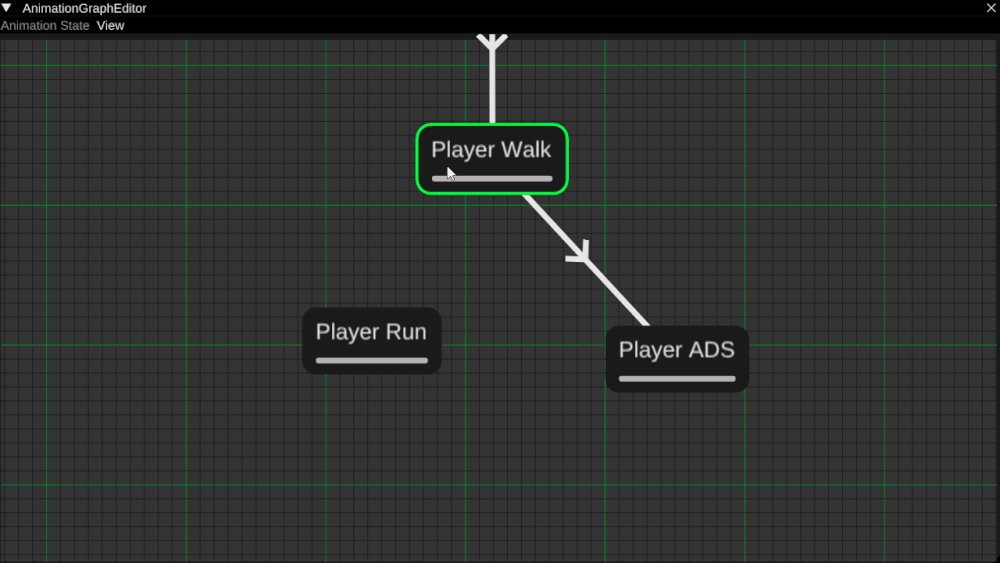

A core feature to any tool is giving the ability to undo and redo their changes.

I implemented this using a command design pattern.

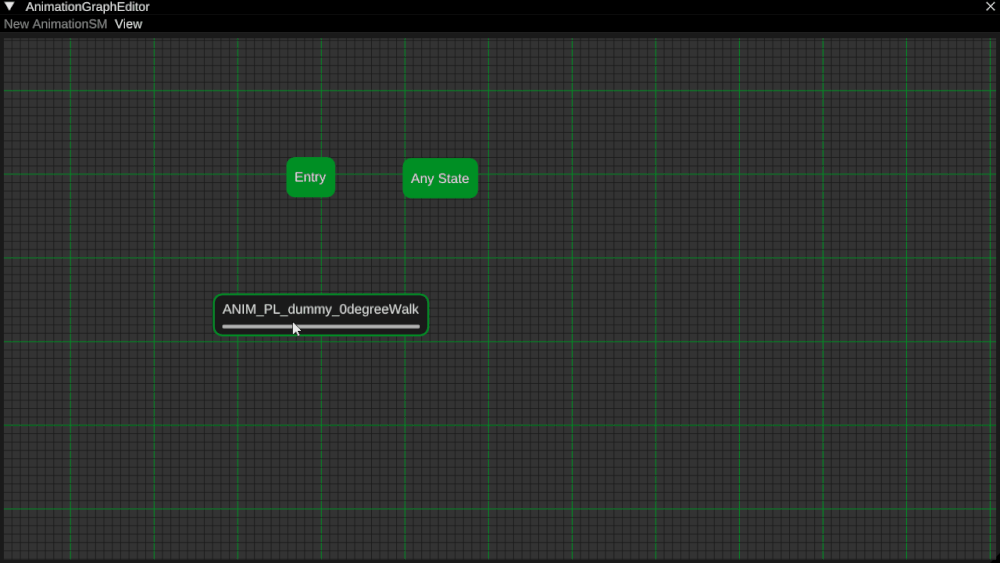

This was added as a neat little feature since I know from experience that animation names can get long, bulky and just plain hard to read.
